Record Carriage Makers Plane No. 010

record 010

This plane is used for general rabbeting work and to clean up or adjust machine made rebates, general joinery work and is recommended for carriage and wagon building.

The Record 010 plane has a malleable iron body, high grade cast iron frog and lever cap. The frog is secured with two bolts and is adjustable in and out by means of the brass wheelnut adjuster set behind the frog and laterally by use of the lever set behind the iron and fixed to the face of the frog. The blade on this plane is full width.

The Record 010 plane has been and still is a very popular plane, from observing the number of these planes that appear on the market for sale, this may have been the most purchased '10' model of the 20th century in front of the Stanley no. 10 equivalent.


Plane Use

The Record 010 plane is used for general rabbeting work and to clean up or adjust machine made rebates, general joinery work and is recommended for carriage and wagon building.

Plane Construction

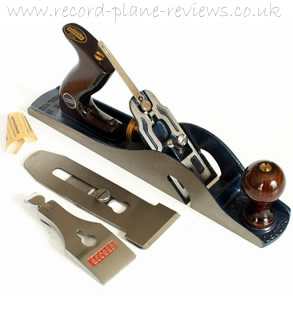

record 010 plane

Body and frog:
high grade cast iron

Lever cap:
high grade cast iron with a plated finish

Cap iron:
best quality steel

Blade:
crucible cast tungsten steel

Depth adjuster wheel/nut:
brass

Handle and knob (earlier models):
rosewood

Handle and knob (later models):
selected hardwoods

Plane finish:
Record stove enamel blue


Plane Markings

"No 010" - (raised) found at the front of the plane
"Record" - (raised) found at the rear of the plane
"Made in England" - (raised) found at the rear of the plane
"Record" - set in relief on the lever cap face

Manufactured Dates

1932-1994

How To Date This Plane

Early planes - (dates) - handle and front knob made from rosewood
Later planes - (dates) - handle and front knob made from selected hardwoods

Plane Also Known As

Record Rabbet Plane 010
Record Rebate Plane 010

Further Info

Record Tool catalogues, No's: 11, 12, 14, 15, 16, 17
Record Planecraft books: 1934, 1943, 1945, 1950, 1953, 1954, 1959

There are also numerous retailer tool catalogues of their time which listed this plane for sale with picture/drawing and snippets of information. We have found it quite facinating looking at some of these and viewing the other tools of the time.

Where Can I Buy This Tool Secondhand?

record 010

This model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £60 - £120

Shops which sell similar planes

* The price shown is a typical price. The price may vary between retailers. The price may vary between planes. Some planes may command higher prices due to condition, type, age, variations.

Where Can I Buy Replacement Plane Blades

Replacement Plane Blades

plane blade

Replacement plane cutters for this model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £18 - £25

Shops which sell these plane blades

* The price shown is a typical price. The price may vary between retailers.


Plane Details

Manufacturer: Record

Model No: 010

Plane Type: Rabbet

Date Produced: 1932-1994
