Record Block Plane No. 0110

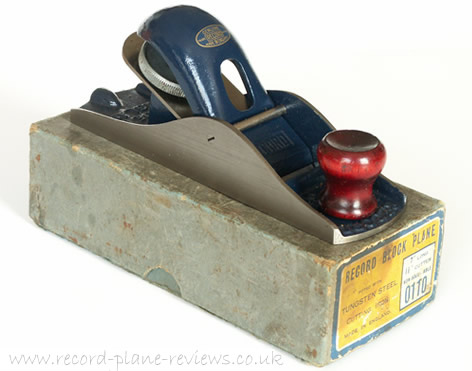

record 0110

The Record 0110 block plane is 7" (17.8cm) long, weighing 0.62kg (1 3/8lb) with a 1 5/8" (4.2cm) wide plane blade. The 0110 is almost identical to the 0120 block plane with the difference being this model of plane is not adjustable.


Plane Use

The Record 0110 block plane is primarily used for end grain work, they are also used for finishing work.

Plane Construction

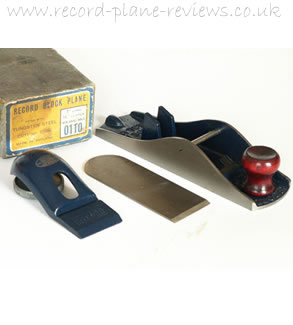

record 0110 plane

Body:
high grade cast iron

Lever cap:
high grade cast iron

Blade (earlier models):
crucible cast tungsten steel

Blade (later models):
high quality tool steel

Front knob:
rosewood

Plane finish:
Record stove enamel blue


Manufactured Dates

1931-1994

Further Info

Record Tool catalogues, No's: 10, 11, 12, 14, 15, 16, 17, 18
Record Planecraft books: 1934, 1943, 1945, 1950, 1953, 1954, 1959

There are also numerous retailer tool catalogues of their time which listed this plane for sale with picture/drawing and snippets of information. We have found it quite facinating looking at some of these and viewing the other tools of the time.

Where Can I Buy This Tool Secondhand?

record 0110

This model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £15 - £40

Shops which sell similar planes

* The price shown is a typical price. The price may vary between retailers. The price may vary between planes. Some planes may command higher prices due to condition, type, age, variations.


Plane Details

Manufacturer: Record

Model No: 0110

Plane Type: Block

Date Produced: 1931-1994
