Record Block Plane No. 0130 - Double End

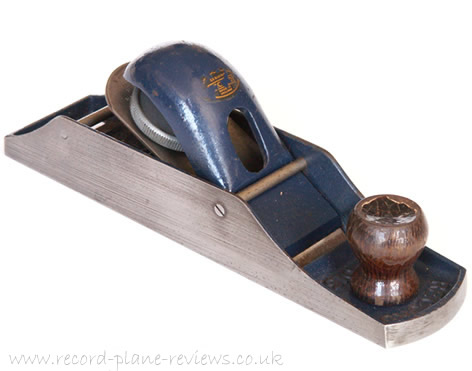

record 0130

The Record 0130 block plane is a non adjustable double-ended plane with two mouths; one at either end of the plane. One end of the plane is for block plane work, the other end is for bull nose work. The required function is achieved simply by moving the blade and lever cap to the required end.

The 0130 double ended plane is 8" (20.3cm) long with a 1 5/8" (4.2cm) wide blade, weighing 0.73kg (1 5/8lb).


Plane Use

The Record 0130 block plane is primarily used for end grain work, they are also used for finishing work. This plane can also be used for bull nose work.

Plane Construction

record 0130 plane

Body:
high grade cast iron

Lever cap:
high grade cast iron

Blade (earlier models):
crucible cast tungsten steel

Blade (later models):
high quality tool steel

Front knob (earlier models):
rosewood

Front knob (later models):
selected hardwoods

Plane finish:
Record stove enamel blue


Manufactured Dates

1932-1982

Further Info

Record Tool catalogues, No's: 11, 12, 14, 15, 16, 17
Record Planecraft books: 1934, 1943, 1945, 1950, 1953, 1954, 1959

There are also numerous retailer tool catalogues of their time which listed this plane for sale with picture/drawing and snippets of information. We have found it quite facinating looking at some of these and viewing the other tools of the time.

Where Can I Buy This Tool Secondhand?

record 0130

This model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £20 - £40

Shops which sell similar planes

* The price shown is a typical price. The price may vary between retailers. The price may vary between planes. Some planes may command higher prices due to condition, type, age, variations.


Plane Details

Manufacturer: Record

Model No: 0130

Plane Type: Block

Date Produced: 1932-1982
