Record Smoothing Plane No. 02C (Corrugated)

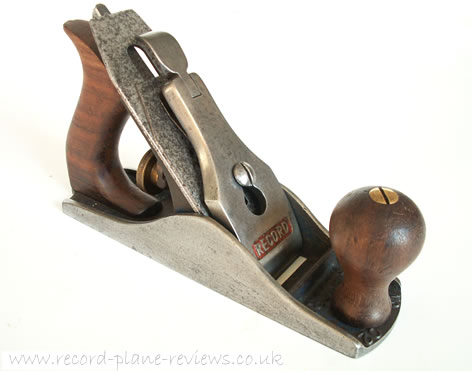

record 02c plane

The Record no. 02C (Corrugated) smoothing plane is an 7 1/4" (18.4cm) long smoothing plane designed for very fine finishing work. The plane is fitted with a 1 5/8" (4.1cm) blade and weighs in at around 2 3/8lbs. This bench plane can also be known as a finishing plane.

The 'C' in the model number indicates the plane has a corrugated sole; a base with a series of parallel grooves. The corrugated sole was designed with the intention of reducing friction between the plane and the surface being planed.

The Record 02 planes are very hard planes to find today, this is no doubt due to not many of these planes being made during the short production period in which they were manufactured. From observing the sale of secondhand Record no. 02 planes and Stanley no. 2 planes, we have noticed Record planes command a much higher price than their Stanley equivalent plane of the period.


Plane Use

The Record 02C plane is generally used for finishing finer work on pieces of joinery and carpentry.

Plane Construction

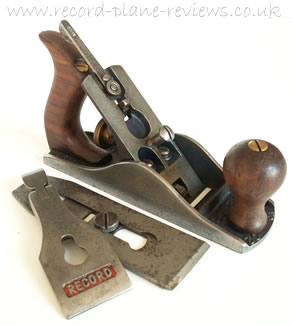

record 02c plane

Body and frog:
high grade cast iron

Lever cap:
high grade cast iron with a plated finish

Cap iron:
best quality steel

Blade:
crucible cast tungsten steel

Depth adjuster wheel/nut:
brass

Handle and knob:
rosewood

Plane finish:
Record stove enamel blue


Plane Markings

"No 02" - (raised) found at the front of the plane
"Record" - (raised) found at the rear of the plane
"Made in England" - (raised) found at the rear of the plane
"Record" - set in relief on the lever cap face

Manufactured Dates

1933-1943

Plane Also Known As

Record Finishing Plane

Further Info

Record Tool catalogues, No's: 12, 14, 15, 16
Record Planecraft books: 1934, 1943, 1945, 1950

There are also retailer tool catalogues of the time which listed this plane for sale with picture/drawing and snippets of information.

Where Can I Buy This Tool Secondhand?

record 02c plane

This model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £150 - £300

Shops that sell similar planes

* The price shown is a typical price. The price may vary between retailers. The price may vary between planes. Some planes may command higher prices due to condition, type, age, variations.


Plane Details

Manufacturer: Record

Model No: 02C

Plane Type: Smoothing

Date Produced: 1933-1943
