Record Bullnose Rabbet Plane No. 075

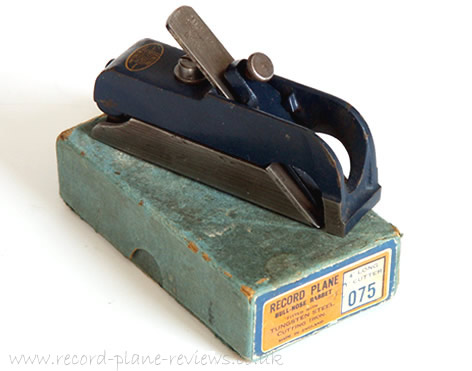

record 075

The Record 075 bull nose plane is a narrow plane designed for planing into corners and difficult places.

The full width shouldered blade is secured by a cap iron which has a screw to the top face which when tightened holds the blade and cap iron in place.

The plane is in two parts; bottom sole and upper side, with a securing screw to the top, this allows the mouth of the plane to be closed or enlarged as required.

The 075 plane is 4" (10.2cm) in length, weighs approximately 0.34kg (3/4lb) and has a 1" (2.6cm) wide blade.


Plane Use

The Record 075 is used for planing into corners and difficult places.

Plane Construction

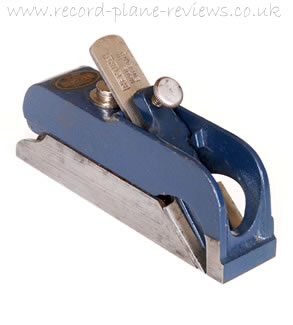

record 075 plane

Body:
high grade cast iron

Lever cap:
high grade cast iron

Blade:
high quality steel

Plane finish:
Record stove enamel blue


Manufactured Dates

1932-1967

Plane Also Known As

Record 075 Rebate Plane
Record 075 Bullnose Plane

Further Info

Record Tool catalogues, No's: 11, 12, 14, 15, 16, 17
Record Planecraft books: 1934, 1943, 1945, 1950, 1953, 1954, 1959

There are also numerous retailer tool catalogues of their time which listed this plane for sale with picture/drawing and snippets of information. We have found it quite facinating looking at some of these and viewing the other tools of the time.

Where Can I Buy This Tool Secondhand?

record 075

This model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £10 - £25

Shops which sell similar planes

* The price shown is a typical price. The price may vary between retailers. The price may vary between planes. Some planes may command higher prices due to condition, type, age, variations.


Plane Details

Manufacturer: Record

Model No: 075

Plane Type: Bullnose

Date Produced: 1932-1967
