Record Bullnose Rabbet Plane No. 076

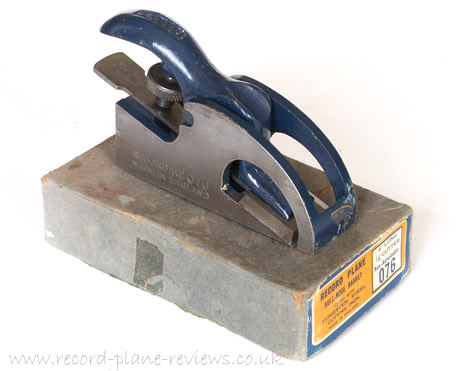

record 076

The Record 076 bull nose plane is a 4" (10.2cm) long, 0.45kg (1lb) tool designed for final trimming and adjustment of joints.

The plane has a 1 1/8" (2.9cm) wide shouldered blade set at a low angle and used with the bevel side up on the blade. The blade is secured by a lever cap with tightening screw, the blade is adjusted to the position required and the screw tightened to set the blade in position. The lever cap is shaped to give a good feel and grip when using the plane.


Plane Use

The Record 076 is used for final trimming and adjustment of joints.

Plane Construction

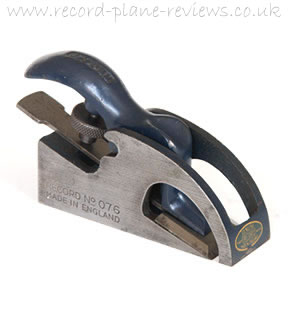

record 076 plane

Body:
high grade cast iron

Lever cap:
high grade cast iron

Blade:
high quality steel

Plane finish:
Record stove enamel blue


Plane Markings

"Record No 076 Made in England" on the right hand side of the plane.

Manufactured Dates

1933-1976

Plane Also Known As

Record 076 Rebate Plane
Record 076 Bullnose Plane

Further Info

Record Tool catalogues, No's: 12, 14, 15, 16, 17
Record Planecraft books: 1934, 1943, 1945, 1950, 1953, 1954, 1959

There are also numerous retailer tool catalogues of their time which listed this plane for sale with picture/drawing and snippets of information. We have found it quite facinating looking at some of these and viewing the other tools of the time.

Where Can I Buy This Tool Secondhand?

record 076

This model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £10 - £35

Shops which sell similar planes

* The price shown is a typical price. The price may vary between retailers. The price may vary between planes. Some planes may command higher prices due to condition, type, age, variations.

Where Can I Buy Replacement Plane Blades

Replacement Plane Blades

plane blade

Replacement plane cutters for this model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £14 - £19

Shops which sell these plane blades

* The price shown is a typical price. The price may vary between retailers.


Plane Details

Manufacturer: Record

Model No: 076

Plane Type: Bullnose

Date Produced: 1933-1976
