Record Bullnose Plane No. 077

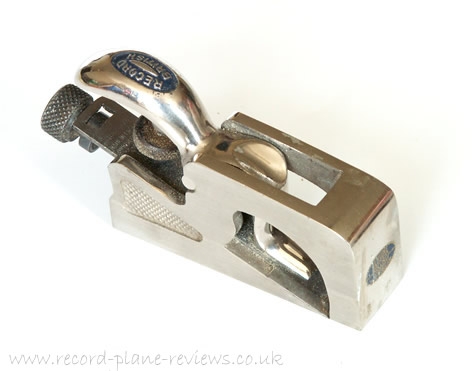

record 077

The Record 077 plane is nickel plated, 4" (10.2cm) in length, weighs approximately 0.57kg (1 1/4lb) and has a 1 1/8" (2.9cm) wide tungsten steel blade.

This plane is used for the trimming of joints, this trimming assists with the final fitting of the joint. The Record 077 plane has an advantage over the Record 075 and Record 076 planes because the blade is on a screw adjuster; the blade has a slot which fits over the adjusting nut making setting the blade position more accurate and will ensure it stays set in position.

The blade is shouldered and set at a low angle which requires the bevel to be up on the blade for use. This low angle gives a finer cut. The blade is secured by a shaped lever cap with a tightening screw. The shaping of the lever cap is designed to sit comfortably in the hand.

This plane was presented in a varnished Record wooden box, this box had a sliding lid.


Plane Use

The Record 077 plane is used for trimming of joints, this trimming assists with the final fitting of the joint.

Plane Construction

record 077 plane

Body:
high grade cast iron

Lever cap:
high grade cast iron

Blade:
crucible cast tungsten steel

Plane finish:
nickel plated


Plane Markings

'Record British' - on top of the lever cap

Manufactured Dates

1933-1943

Further Info

Record Tool catalogues, No's: 12, 14, 15 (1938), 16 (1949)
Record Planecraft books: 1934, 1943, 1945, 1950, 1953, 1954

There are a few retailer tool catalogues of their time which listed this plane for sale with picture/drawing and snippets of information. We have found it quite facinating looking at some of these and viewing the other tools of the time.

Where Can I Buy This Tool Secondhand?

record 077

This model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £30 - £70

Shops which sell similar planes

* The price shown is a typical price. The price may vary between retailers. The price may vary between planes. Some planes may command higher prices due to condition, type, age, variations.

Where Can I Buy Alternative Modern Planes?

Clifton Planes

clifton plane

This model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £115 - £130

Shops which sell these planes

* The price shown is a typical price. The price may vary between retailers.

Where Can I Buy Replacement Plane Blades

Replacement Plane Blades

plane blade

Replacement plane cutters for this model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £15 - £20

Shops which sell these plane blades

* The price shown is a typical price. The price may vary between retailers.


Plane Details

Manufacturer: Record

Model No: 077

Plane Type: Bullnose

Date Produced: 1933-1943
