Record Bullnose Rabbet Plane No. 1366

record 1366
record 1366 record 1366 record 1366 record 1366

The Record 1366 plane is a narrow bull nose rabbet plane designed for planing little awkward areas which appear during cabinet work and alike.

The No. 1366 is a 3" (7.6cm) nickel plated plane with a rosewood wedge and fitted with a 3/8" (9mm) tungsten steel cutter. This plane weighs approximately 5 ounces.

This plane is quite rare, especially in very good condition and even more so with the original Record box.

The Preston 1366 And The Record 1366 Planes

record 1366 plane

The design of the Record 1366 plane was made to an almost identical specification as to its Preston 1366 plane predecessor. The only visual differences between the two planes being the shape of the wedge and the markings on either side of the plane. The Record 1366 has the markings 'Record' on one side and 'No 1366' on the other side where as the Preston 1366 has the 'cherry' symbol on both sides.

A new version of this plane can still be purchased today; the Clifton No. 400 rebate plane is an almost identical copy of the Preston plane version.

Is The Record 1366 Plane Rare?

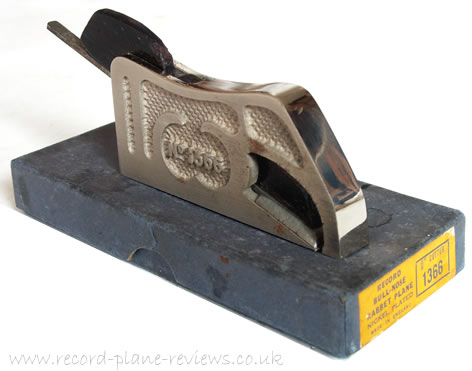

record 1366 plane box

The Record 1366 is considered quite a rare plane due to its short manufacturing period and due to the limited number of these planes which appear on the market today. As with most antique and collectable items, condition is everything when trying to achieve the highest price, as is the case with this plane. A 1366 in almost new like condition with all of the nickel plating makes the plane even rarer and a lot more valuable to a collector.

The box for the 1366 is very rare, especially a box which is in good condition with a legible trade label.


Plane Use

The Record 1366 plane is used for planing little awkward areas which appear during cabinet work and alike.


Plane Construction

record 1366 plane

Body:
high grade cast iron

Lever cap:
high grade cast iron

Blade:
crucible cast tungsten steel

Plane finish:
nickel plated







Plane Markings

'Record' on the left hand side
'No 1366' on the right hand side

Manufactured Dates

1935-1943

Plane Also Known As

Record Rabbet Plane 1366
Record Rebate Plane 1366

Further Info

Record Tool catalogues, No's: 15 (1938), 16 (1949)
Record Planecraft books: 1934, 1943, 1945, 1950, 1953, 1954

There are a few retailer tool catalogues of their time which listed this plane for sale with picture/drawing and snippets of information. We have found it quite facinating looking at some of these and viewing the other tools of the time.

Where Can I Buy This Tool Secondhand?

record 1366

This model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £50 - £150

Shops which sell similar planes

* The price shown is a typical price. The price may vary between retailers. The price may vary between planes. Some planes may command higher prices due to condition, type, age, variations.

Where Can I Buy Alternative Modern Planes?

Clifton Planes

clifton plane

This model of plane can be purchased from the following woodworking tool retailers, subject to availability.

Price: £70 - £90

Shops which sell these planes

* The price shown is a typical price. The price may vary between retailers.


Plane Details

Manufacturer: Record

Model No: 1366

Plane Type: Bullnose

Date Produced: 1935-1943
